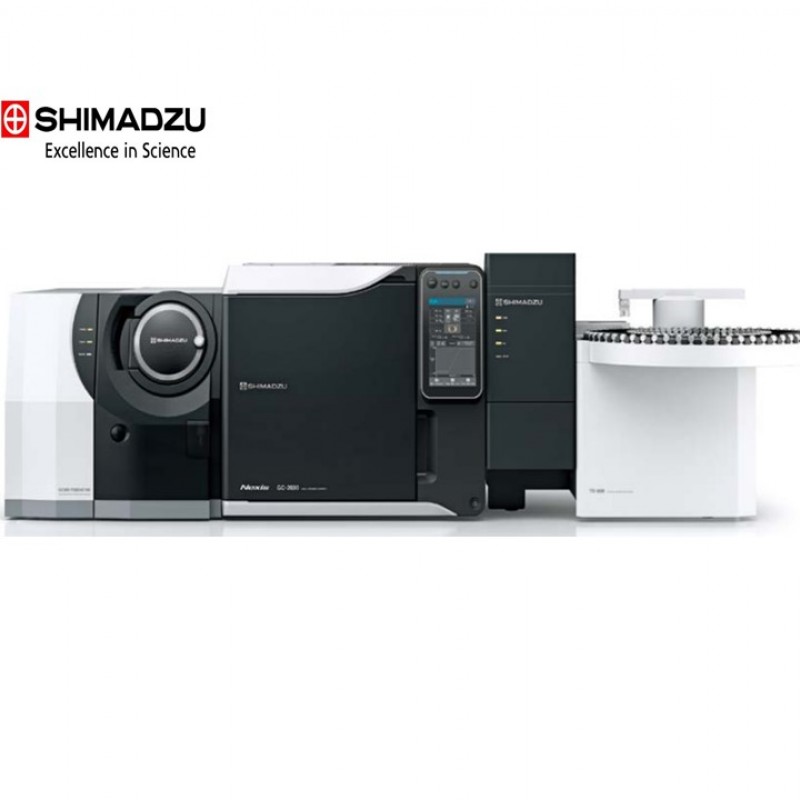

The TD-30 Thermal Desorpiton System was developed as the optimal solution for gas and materials analysis. Its outstanding processing ability and excellent expandability provide strong support for all types of analysis, from work in research departments to quality control.
The TD-30R Thermal Desorber has a maximum capacity of 120 samples, which allows processing a large number of samples via consecutive analyses overnight and on weekends. In addition, the sample tray is positioned lower down on the front of the instrument. This makes it easy to access even during analysis, and prevents tube positioning errors.
With the TD-30 series Thermal Desorber, the overlap function enables the next sample to be pretreated during GC analysis, which shortens the analysis cycle time. In addition, the interrupt function enables unscheduled samples to be inserted even during consecutive analysis. As a result, a sample can be added after checking the results for a different sample, and an urgent sample analysis request can be accommodated.

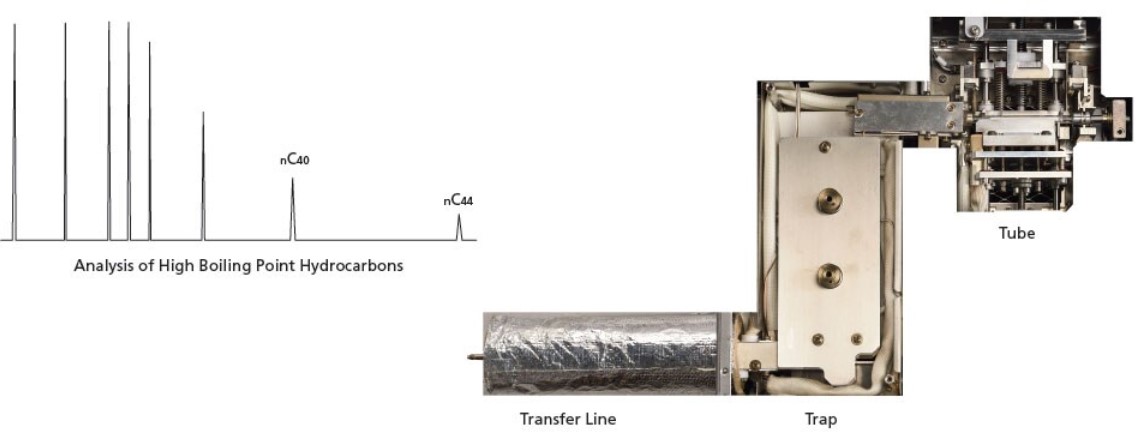

With the TD-30 series, the entire sample line can be heated, so there are no cold points.
In addition, the sample line, including the transfer line, is designed to be short, which minimizes dead volume, and even highly adsorbent components and high boiling point components can be analyzed with high sensitivity.

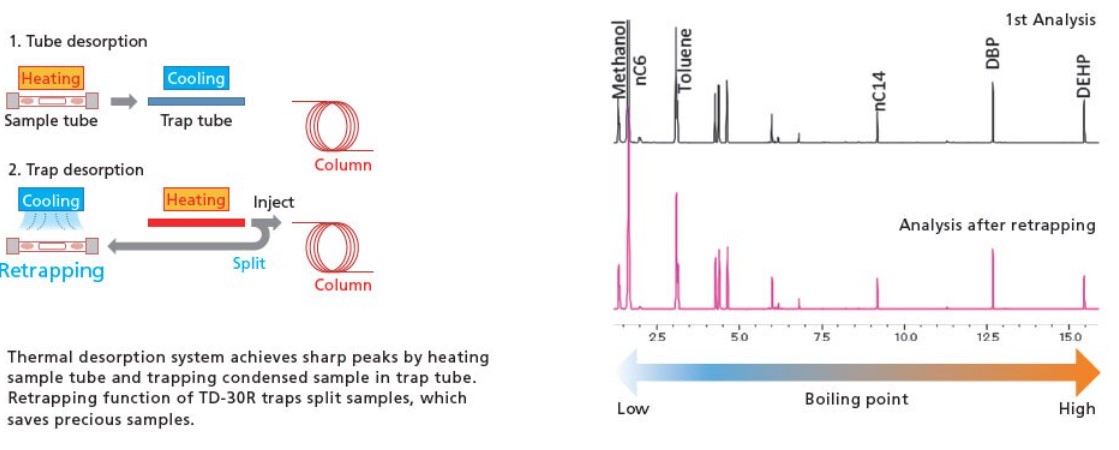

With the retrapping (restore) function, split samples desorbed from the tube and loaded into the GC-MS are once again trapped by the tube. Even if a problem occurs, the sample can be measured again, so that even precious trace samples can be analyzed with a sense of ease. In addition, with the TD-30R, the tube is cooled rapidly after desorption, so even low boiling point components can be restored.

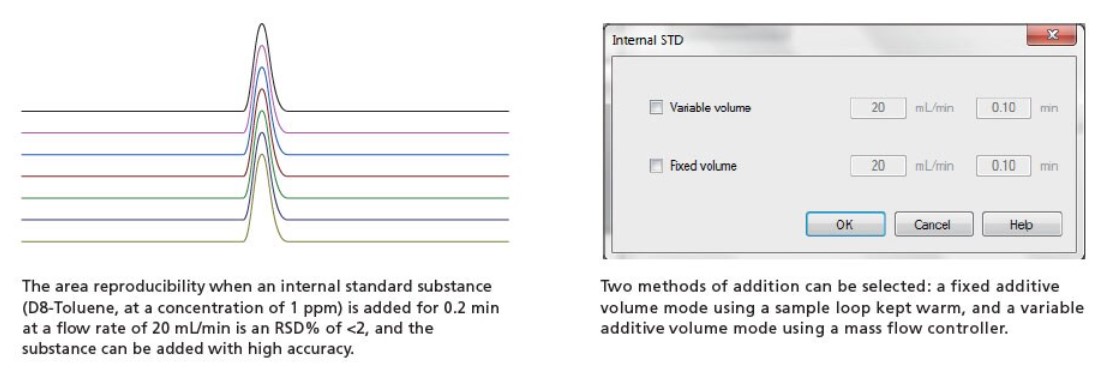

The TD-30R can automatically add a gaseous internal standard substance to the sample tube. Highly reliable quantitative results can be obtained, even for the analysis of trace components.
The TD-30R can be optionally equipped with a barcode reader function. The barcode printed on the tube can be automatically read, and the tube and sample information recorded by the software.
Furthermore, the conditions when the tube was analyzed can be easily checked.
The TD-30 series supports sample tubes (size: 1/4" × 3.5") from various manufacturers. The user can select the optimal tube to suit the application.In addition, TD tubes that the customer already has can be used.
With the TD-30 Thermal Desorber series, traps, O-rings, and other consumables and maintenance parts can be accessed from the top surface of the instrument, so replacement is simple.
The system is equipped with a software function that records the number of uses of consumables and maintenance parts, and notifies the user when a pre-specified number of uses has been reached. Accordingly, problems due to the operating life of parts can be avoided.
The TD-30 series features a built-in tube protection sensor, which significantly reduces tube damage during cap removal.
In addition, before the tube is removed, the pressure inside the tube is reduced, extending the tube's lifetime.
