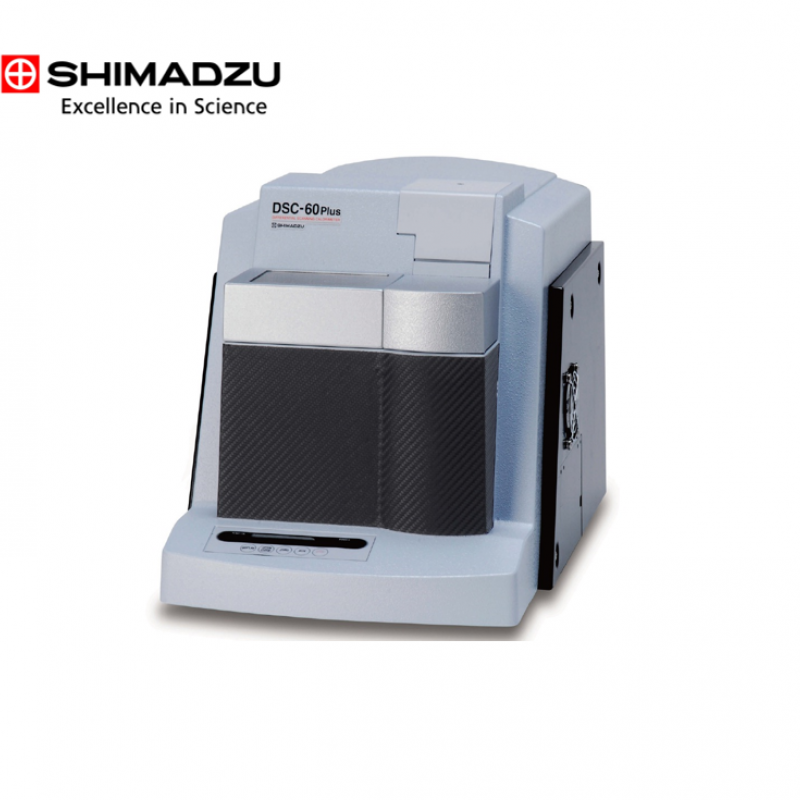

DSC-60 Plus/60A Plus Differential Scanning Calorimeter

The DSC-60 Plus Differential Scanning Calorimeter is an indispensable thermal analyzer for materials characterization in R&D and quality control applications in such areas as polymers, pharmaceuticals, electronic parts, foods, etc . It offers the sensitivity and easy operation required for the development of high-performance, highly functional new materials.

  • Temperature range: -140 – 600 °C
  • Calorimetric measurement range: ±150 mW
  • Noise level: 0.5µW
  • Liquid nitrogen cooling option

The newly developed detector and unique furnace structure of the DSC-60 Plus offer a stable baseline with a wide measuring temperature range (-140-600°C) as well as top-class calorimetic sensitivity.

Trace Sample Measurement with High Precision

A stable baseline and S/N performance allow one minute of calorimetric change to be detected during monitoring analysis.













​​​​​​

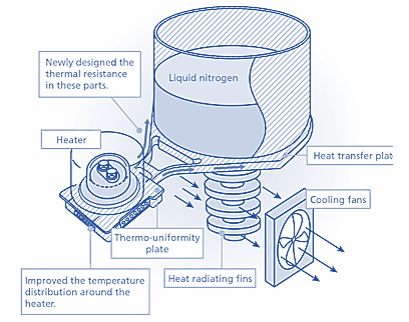

DSC-60 Plus Series Furnace Design with Superior Technology

With its new detector design and new unique furnace structure, DSC-60 Plus series offers more precise solutions by reaching a noise level of less than 0.5µW, which provides a stable baseline.


















Measurements Below Room Temperature with DSC-60 Plus Series Cooling Chamber

The system is supplied by pouring liquid nitrogen from the inlet into the chamber to lower the temperature. It is extremely useful and practical by eliminating the use of special accessories.
By providing a controlled cooling process, it reaches 10 ºC /sec performance at -100 ºC required for measurements. For analyzes performed below room temperature, the furnace temperature must be converted to a range close to room temperature during sample exchange.
Since the sample loading temperature function only heats the surrounding of the sample when the sample is changed, moisture condensation is prevented and the measurement is continued quickly.

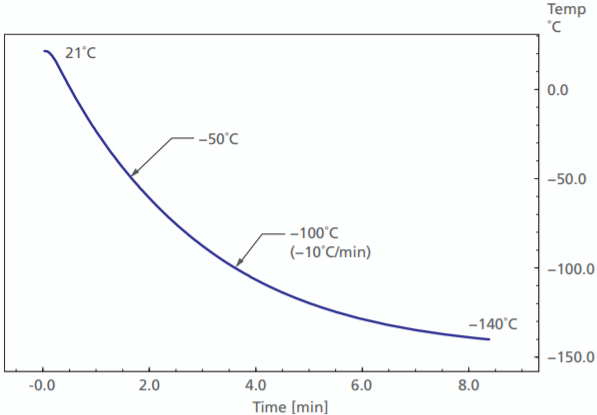

Cooling performance with liquid nitrogen

















Sample loading temperature function













DSC-60A Plus Differential Scanning Calorimeter
Ability to make continuous measurements without the need for observation

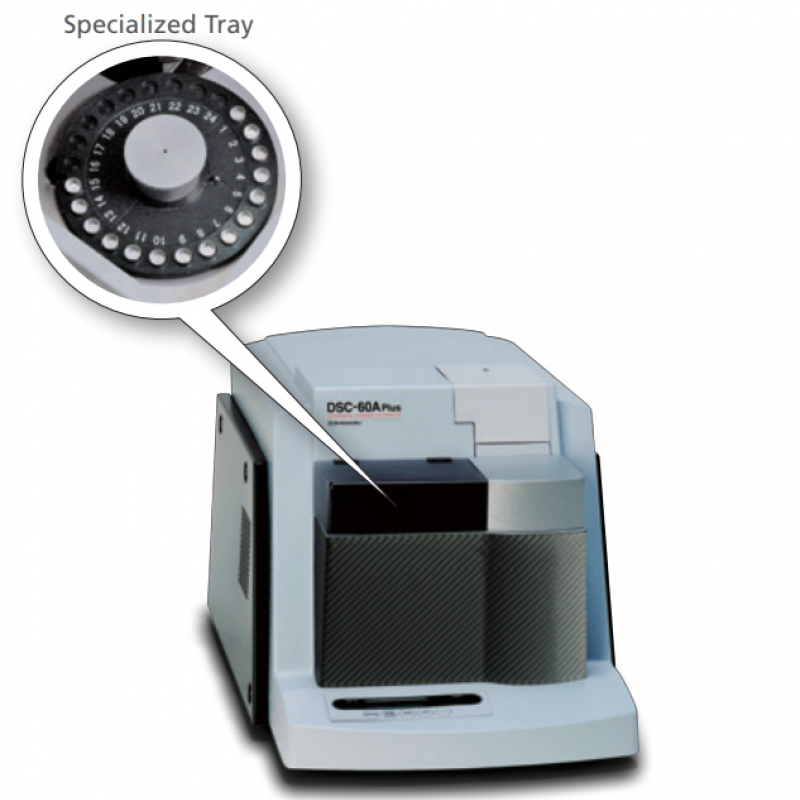

Automatic measurement, analysis and report output for up to 24 loaded samples with compact autosampler
  • It increases the effectiveness of screening during product development and the effectiveness of studies in the field of quality control.
  • The footprint is the same as the standard model.




















Functioning in Compliance with Analytical Laboratory Regulations

Thermal analysis systems are frequently preferred in drug development and quality control areas.

  • These areas require rapid compliance with PIC/S GMP guidelines.
  • Registration/electronic signature (ER/ES) guidelines and procedures, including US FDA 21 CFR Part 11.

Shimadzu thermal analyzers can work in collaboration with a variety of analytical instruments to ensure compliance with laboratory regulations.



OPTIONS

Liquid Nitrogen Auto Cooling System TAC-60L

Sequential measurements with liquid nitrogen are activated at temperatures between -130 and 500 °C.

  • The cooling capacity is -10 °C /second ( -80 °C).



  • In order to keep the feed flow rate constant, the internal pressure of the tank is optimally controlled by the amount of liquid nitrogen remaining in the tank.
  • Vibration is reduced in the system so that the DSC baseline remains stable even during cooling measurement.














Electric Auto Cooling Connection TAC-60İ

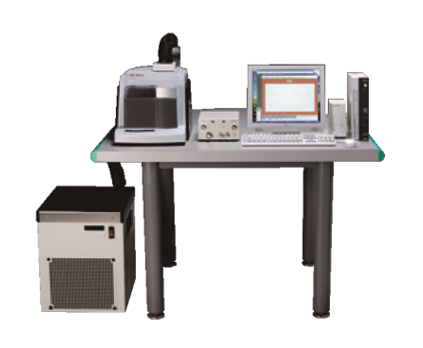

Sequential measurements are activated at temperatures between -50 and 500 °C by connecting a commercially available immersion cooler.

  • The cooling capacity is -5 °C/minute (-30 °C).
  • Since this cooling system does not use liquid nitrogen, it provides easy and safe operation.
  • The use of the cooling system in combination with the DSC 60A Plus provides automatic cooling measurement.

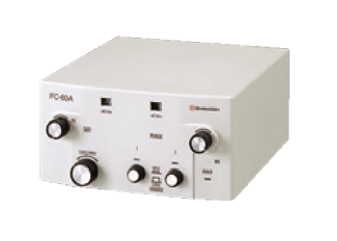

Flow Controller FC-60A (P/N : 346-67995-91)

FC-60A flow controller is used to control the flow rate of atmospheric gases (two channels).
As the gas ON/OFF control is designed according to a temperature program, the atmosphere can be changed automatically during a measurement.











Sample Sealer / Crimper SSCP-1 (P/N: 222-13130-91)

It is used to crimp the sample cup (1) or to close the sample pans. (8, 10, 12, 13, 14)












El Prensi SSP-10A (P/N 200-64174)

It is used in pressure resistant stainless steel pans.










Sealing Adapter for Pressure Stainless Steel Hermetic Pan (P/N 222-01875-91)

It is used in pressure resistant stainless steel pans. (9)
