Direct Heat Chamber

• 165L & 255 L electropolished stainless steel and solid copper chambers with compact footprint, easily stackable

THRIVE  Active Airflow

• In-chamber fan gently distributes clean, humidified air throughout the chamber ensuring  homogeneous conditions
• Fast recovery of all parameters ten minutes or less for stable culturing conditions
• Auto-stop function disables fan operation during door openings to minimize air exchange

ISO 5 HEPA Filtration

• In-chamber HEPA continuously filters the entire chamber air volume every 60 seconds
• ISO 5 clean room air quality is achieved in the culture chamber within five minutes
• Continuous protection by minimizing ability for contaminants to settle on interior surfaces

Protected Humidity Reservoir

• Directly heated water reservoir provides stable high relative humidity levels, preventing culture desiccation
• Condensation free inner chamber, prevents a breeding ground for contaminant
• 5X faster humidity recovery than traditional water pan designs

In situ Sensors and Probes

• Dual temperature probes for over temperature protection with operational back up
• Single beam, dual wavelength infrared (IR) CO₂sensor
• O₂control ranges 1 to 21% (hypoxic) and 5 to 90% (hyperoxic)



Steri-Run, High Temperature Defection Cycle

• Overnight cycle simplifies cleaning and eliminates the need for separate autoclaving of parts
• 180°C cycle assures uniform 6-log sterilization on all chamber surfaces

Intuitive, interactive iCAN™ Touchscreen Control

• Bright, door-mounted display for easy accessibility and viewing
• Selectable languages simplify operation: English, Spanish, German, French, Italian, Japanese and Mandarin

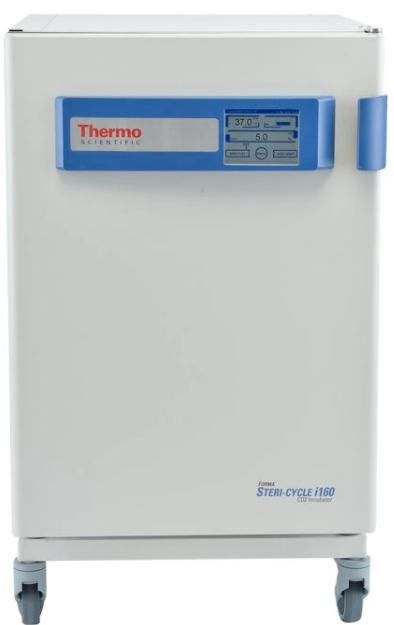

Forma™ Steri-Cycle™ i160 Series
Copper Chamber Co2 Incubator

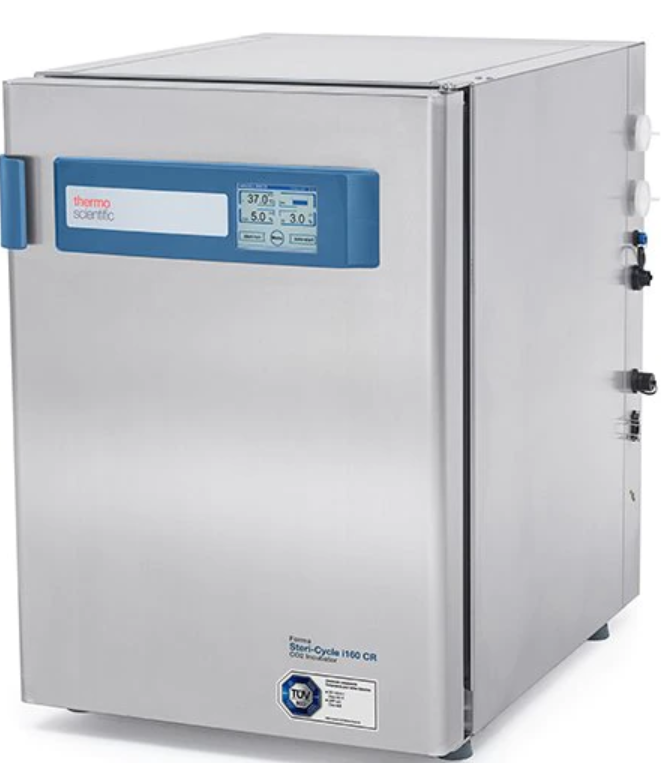

Meet the first-to-market certified cleanroom compatible CO2 Incubator certified for use in ISO Class 5 and GMP class A/B environments according to ISO 14644-1. Offering the next level of particle and contamination control, enhanced compatibility with cleanroom cleaning procedures, and documentation to support the validation process, this incubator sets the standard for the transition to commercial environments for research.



















Certified Cleanroom and GMP Compatibility

• Certified compatible for ISO Class 5 and GMP Grade A/B environments in accordance with DIN EN ISO 14644-1
• Active Particle Control System patent-pending technology controlling the number of particulates released into the cleanroom
• Brushed stainless steel exterior casing with IP54 rating for superior cleaning compatibility
• Documentation package included to support timely and rapid validation processes

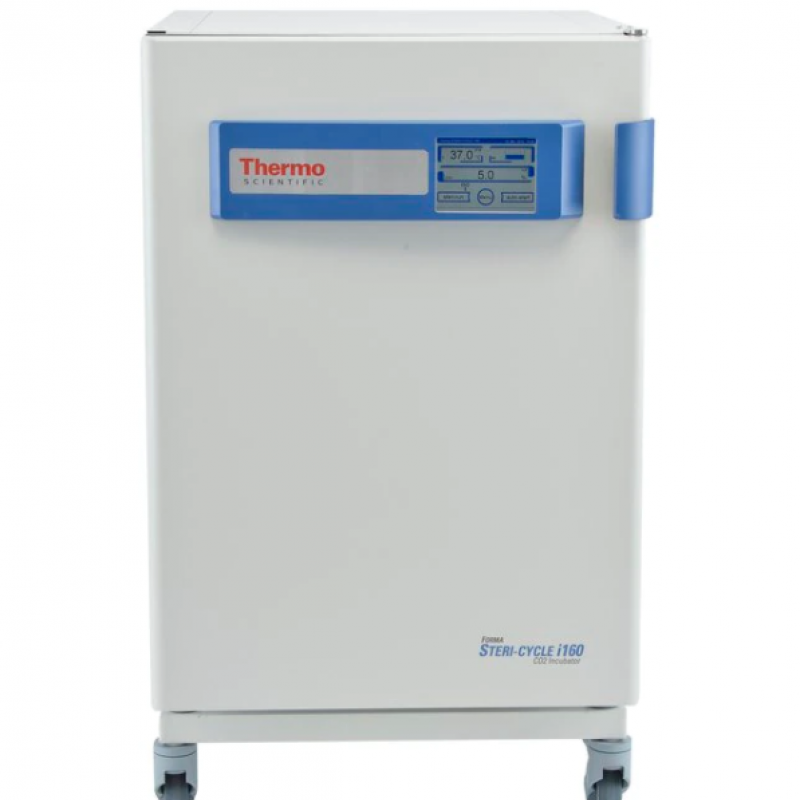

Forma™ Steri-Cycle™ i160 Series
Electropolished Stainless Steel CO2 Incubator

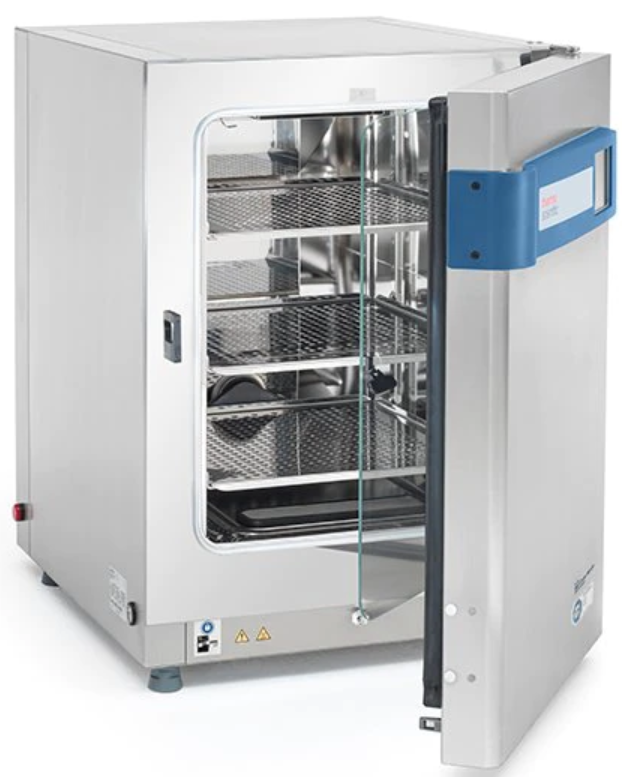

The Thermo Scientific™ Forma™ Steri-Cycle™ i160 CO2 Incubator with Stainless Steel Bowl has been specifically designed to provide the performance reliability, ease of use and value needed to support a variety of culture needs, from basic research to demanding and pioneering applications.
It offers better solutions for optimal cell growth. Our CO2 incubators with non-corrosive stainless steel interiors provide the ideal in vitro environment.

































For more information please click.
