Shimadzu Corporation

GC-2025 Gas Chromatography (GC) System

Shimadzu's next generation GC-2025 Capillary Gas Chromatography (GC) minimizes environmental impact by reducing power and carrier gas consumption while maintaining the performance characteristics required for capillary analysis. The GC-2025 includes a digital flow controller that controls both carrier and GC detector gases, and a newly designed energy efficient column furnace with small volume and less heating loss, resulting in a dramatic improvement in operating costs.

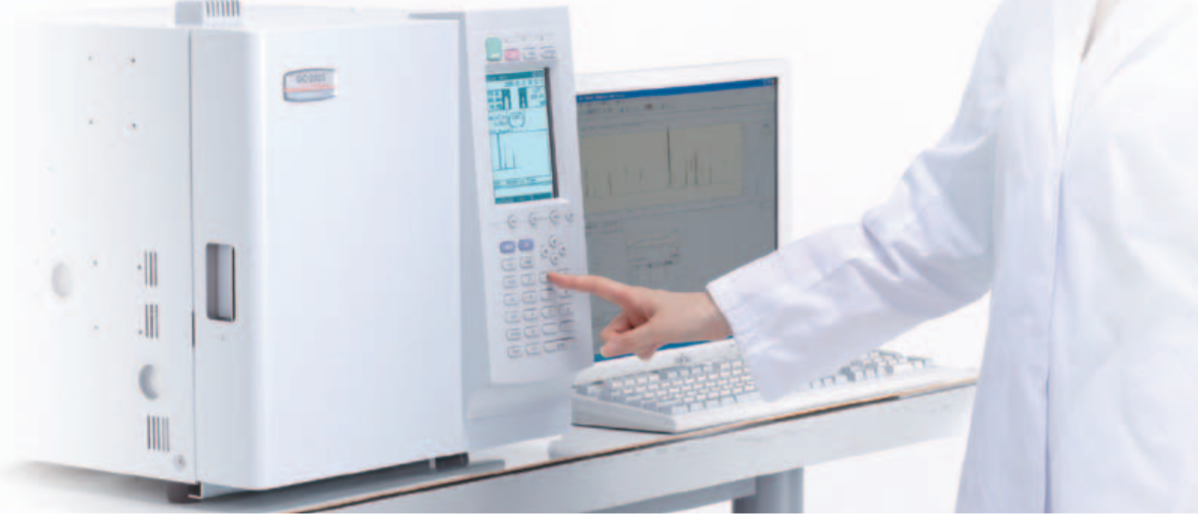

The compact GC-2025 Gas Chromatograph is an environmentally friendly gas chromatography system developed for high value performance. Split/splitless injection block (SPL), flame ionization detector (FID), electronic flow controllers (AFC/APC) used for carrier gas and detector gas control are standard in the system.

Some of the usage areas

  • Fat, fatty acid (FAME) analysis
  • Volatile (solvent, VOC) analysis
  • Aromatics, odor analysis
  • Alcohol analyzes

The GC-2025 system is suitable for the use of capillary columns. The minimum detection limit of the FID detector of 2 pgC/s allows trace analysis.

  • Possibility to work up to 450 ºC
  • System with FID
  • Compact design
  • Autoinjector with a capacity of 12 or 150 vials










Compact Design Accepts Commercial Capillary Columns

Despite the compact instrument design, in the GC-2025 Gas Chromatography system, the small capacity furnace accommodates the shape of commercially available capillary columns (column depth max. 9 cm).










High Precision

High precision AFC and advanced design split/unsplit injection unit ensure high repeatability of retention time and peak area.
The FID minimum detectable limit of 2 pgC/s offers high sensitivity for trace analysis.

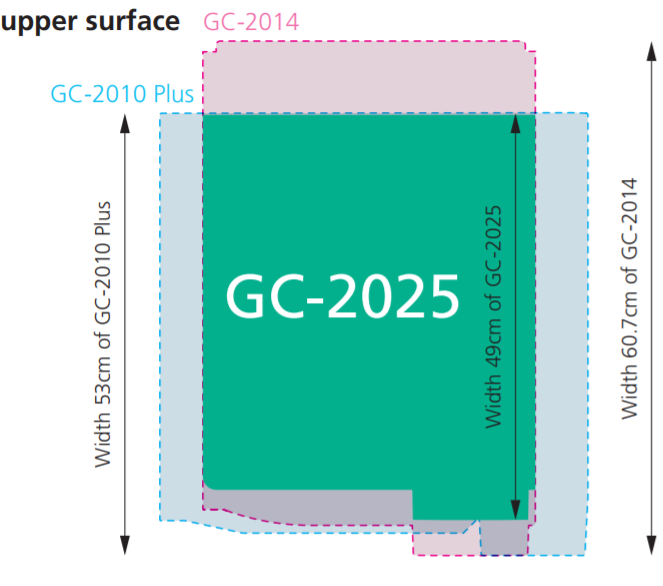

Space-Saving Design Allows Easy Installation Anywhere















Unique, Eco-Friendly Technology for High Energy Savings

The compact design and efficient insulating materials inside the furnace minimize heat capacity and heat loss, reducing electricity costs and achieving a more environmentally friendly operation. In addition, the GC-2025 is equipped with an energy-saving heater that provides a 30% (*) reduction in electricity consumption during temperature programming analysis compared to the GC-2010 Plus.

  • VOC (Volatile Organic Carbon) Determination in GC-FID Flue Gas

    In this study, the application of volatile organic carbon (VOC) determination in flue gas by means of Gas Chromatography (GC) system is included.

    Instrument: Shimadzu GC-2010 Plus Gas Chromatograph


  • Determination of Fatty Acid Methyl Esters in Vegetable Oils by GC-FID

    Vegetable oils were converted to methyl ester derivatives and analyzed.

    Instrument: Shimadzu GC-2010 Plus Gas Chromatograph
