Particle Size Analyzers (Aggregates Sizer / SALD)

Shimadzu Corporation

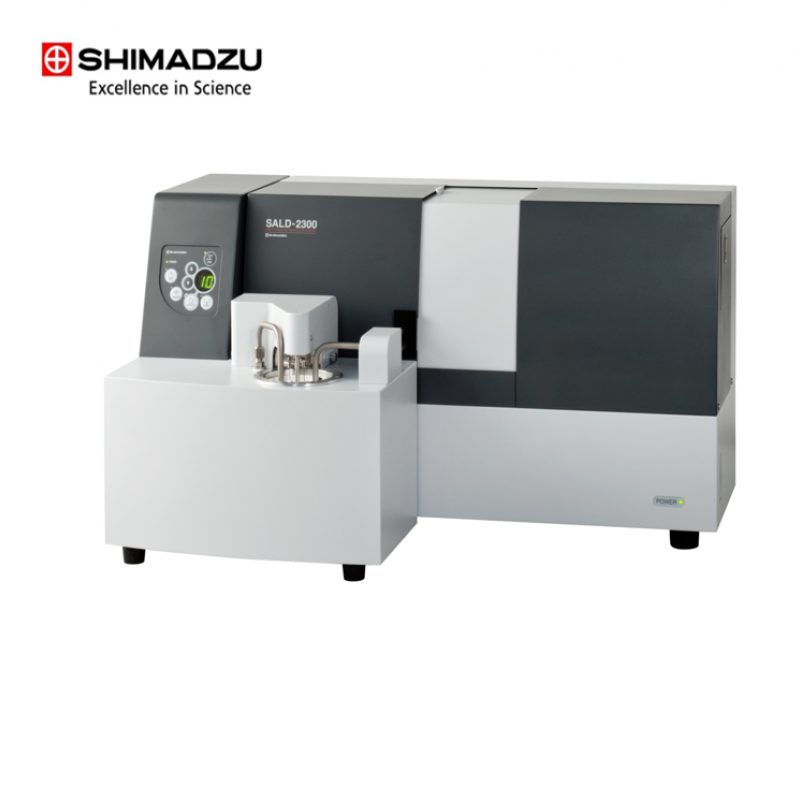

SALD-2300 Laser Diffraction Particle Size Analyzer

The Shimadzu SALD-2300 Laser Diffractive Particle Size Analyzer is equipped with many new functions useful for evaluating changes in particle size distribution (dispersion, aggregation, dissolution) by concentration or time.

It supports a particle concentration range of 0.1 ppm to 20% and can perform a series of measurements of 200 data points at minimum 1 second intervals.

Download Product Catalog

Technical Specifications
Application Note

Wide particle concentration range from 0.1ppm to 20%.
Continuous measurement function at minimum 1-second intervals
Wide measurement range from 17nm to 2500 μm
Various sample amounts (Suspension) can be selected according to measurement objects and purposes
Optional Dry measurement unit

Wide applicability

Using the SALD-MS23 sampler, the measurement range is 17nm to 2500μm for wet measurement.
For example, PSL particles with a median diameter of 50nm and stainless balls with a diameter of 2mm can be measured by a single analyzer.

The system configuration can be optimized to address various uses, purposes, measurement objects, environments and conditions.

Various sample amounts (Suspension) can be selected according to measurement objects and purposes.

Sample amount for SALD-MS23 is variable: 100mL, 200mL, or 300mL.
Sample amount for batch cell SALD-BC23 is 12mL.
In the case of high-concentration sample measurement system SALD-HC23, optional indentation can be used for sample amounts ranging from 15μL to 150μL.

Measurement without Dilution of Hand Cream

Evaluation of Negative Electrode Material of a Secondary Battery

At left is a graph showing the results of measuring a carbon black particle.
The agglomeration particle (micrometer range) has been dispersed to the fine particle (sub-micrometer range) by dispersion processing using a homogenizer. The sample (sample that absorbs light like the carbon black) that doesn't transmit light easily can be measured based on the improvement in sensitivity.
