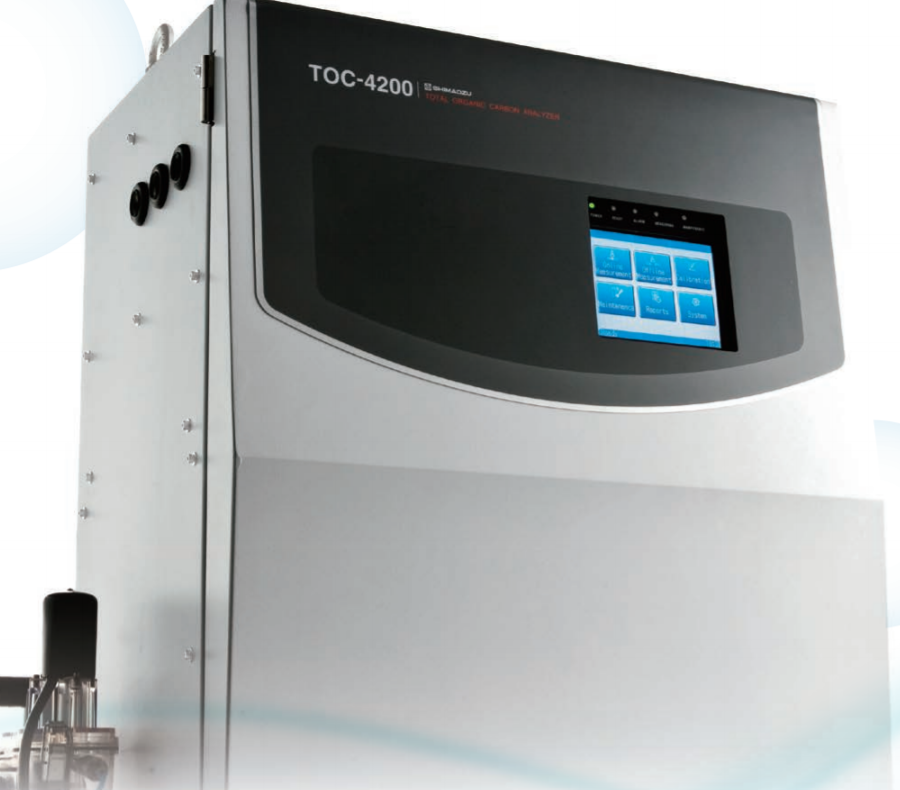

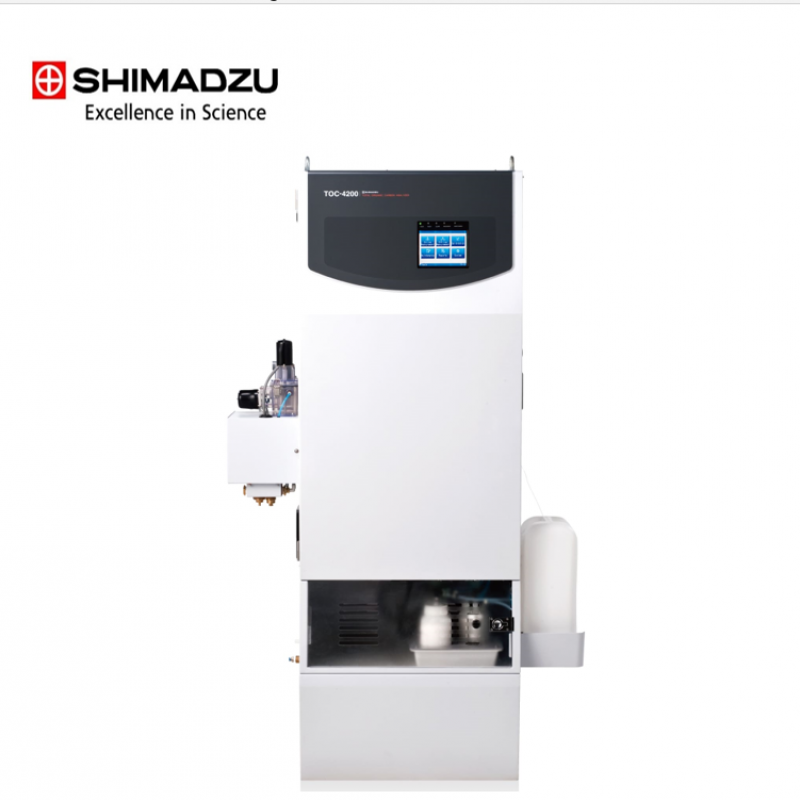

TOC-4200 Toplam Organik Karbon Analizörü (Online Type)

TOC-4200 on-line TOC analizörü EPA onaylı 680°C Yüksek Sıcaklıklı Katalitik Oksidasyon Metodu SM 5310B’e uygun olarak tasarlanmıştır.

Tüm dünyada en güvenilir ve etkin TOC analiz tekniği olarak kabul edilmiş olan bu metod, atık su ve deniz suyu gibi kompleks matriksler için de son derece uygundur.

  • Uzaktan ve SCADA İletişimi, Veri İşleme
  • En zor matrikslerde bile analiz olanağı
  • Yüksek TSS (askıda katı madde) içeren numunelerin analizine uygun
  • Bakım ve çalıştırma maliyetleri düşük, kısa sürede onarım olanağı
  • Otomatik çok noktalı kalibrasyon, otomatik numune seyreltme, otomatik Kalite Kontrol
  • Kullanım kolaylığı ve geniş uygulama alanı

Supports monitoring TOC removal rate based on EPA Regulations

  • Calculates TOC removal rate based on the United States EPA regulations
(Part IV 40 CFR Part 9, 141 and 142, 1998)
(when a 2- or more-stream switching option is provided)

Total pollutant load control regulation applications (organic pollution load)

  • Converting the measured TOC values allows applications to COD total volume control. (*1) TOC → COD conversion functions are installed as standard.
  • Reading flow rate signals from a flow meter (*2) permits COD load conversion calculations.

Wastewater treatment plant influent (upstream monitoring) and effluent

  • Measurements at a short measuring cycle (4 minutes minimum) rapidly capture dramatic changes in organic matter or abnormal effluent.
  • The powerful oxidation capacity of a combustion-type analyzer can detect organic matter that cannot be captured using a UV meter.
  • The short measuring cycle and powerful oxidation, combined with switching between up to six flow lines, offer detailed monitoring of treatment plants.

Monitoring of river water sampled at water purification plants and treated water (tap water)

  • Monitoring changes in river water quality due to rainfall and other factors to provide control indicators for treatment processes.
  • Permits simultaneous monitoring of treated tap water.

Plant water (washing water, cooling water, recovered water, boiler water, condensate, etc.)

  • Continuous monitoring of water used in a plant.
  • Continuous monitoring of pure boiler water assists in the detection of anomalies, such as damaged pipes.
  • The short measuring cycle (4 minutes minimum) of the combustion-type TOC analyzer achieves more rapid detection of anomalies.
  •

*1 The TOC-COD conversion formula must be determined separately.
*2 With attached option
